Versions: A3102 (International); A2848 (USA); A3101 (Canada, Japan); A3104 (China, Hong Kong)
NETWORK
Technology
GSM / CDMA / HSPA / EVDO / LTE / 5G
LAUNCH
Announced
2023, September 12
Status
Available. Released 2023, September 22
BODY
Dimensions
146.6 x 70.6 x 8.3 mm (5.77 x 2.78 x 0.33 in)
Weight
187 g (6.60 oz)
Build
Glass front (Corning-made glass), glass back (Corning-made glass), titanium frame (grade 5)
SIM
Nano-SIM and eSIM - International
Dual eSIM with multiple numbers - USA
Dual SIM (Nano-SIM, dual stand-by) - China
IP68 dust/water resistant (up to 6m for 30 min)
Apple Pay (Visa, MasterCard, AMEX certified)
DISPLAY
Type
LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM)
Size
6.1 inches, 91.3 cm2 (~88.2% screen-to-body ratio)
Resolution
1179 x 2556 pixels, 19.5:9 ratio (~461 ppi density)
Protection
Ceramic Shield glass
Always-On display
PLATFORM
OS
iOS 17, upgradable to iOS 17.1.1
Chipset
Apple A17 Pro (3 nm)
CPU
Hexa-core (2x3.78 GHz + 4x2.11 GHz)
GPU
Apple GPU (6-core graphics)
MEMORY
Card slot
No
Internal
128GB 8GB RAM, 256GB 8GB RAM, 512GB 8GB RAM, 1TB 8GB RAM
NVMe
MAIN CAMERA
Triple
48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS
12 MP, f/2.8, 77mm (telephoto), 1/3.5", 1.0µm, PDAF, OIS, 3x optical zoom
12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 1.4µm, dual pixel PDAF
TOF 3D LiDAR scanner (depth)
Features
Dual-LED dual-tone flash, HDR (photo/panorama)
Video
4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, Cinematic mode (4K@24/30fps), 3D (spatial) video, stereo sound rec.
SELFIE CAMERA
Single
12 MP, f/1.9, 23mm (wide), 1/3.6", PDAF, OIS
SL 3D, (depth/biometrics sensor)
Features
HDR, Cinematic mode (4K@24/30fps)
Video
4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS
SOUND
Loudspeaker
Yes, with stereo speakers
3.5mm jack
No
COMMS
WLAN
Wi-Fi 802.11 a/b/g/n/ac/6e, dual-band, hotspot
Bluetooth
5.3, A2DP, LE
Positioning
GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC
NFC
Yes
Radio
No
USB
USB Type-C 3.2 Gen 2, DisplayPort
FEATURES
Sensors
Face ID, accelerometer, gyro, proximity, compass, barometer
Ultra Wideband 2 (UWB) support
Emergency SOS via satellite (SMS sending/receiving)
BATTERY
Type
Li-Ion 3274 mAh, non-removable
Charging
Wired, PD2.0, 50% in 30 min (advertised)
15W wireless (MagSafe)
7.5W wireless (Qi)
4.5W reverse wired
MISC
Colors

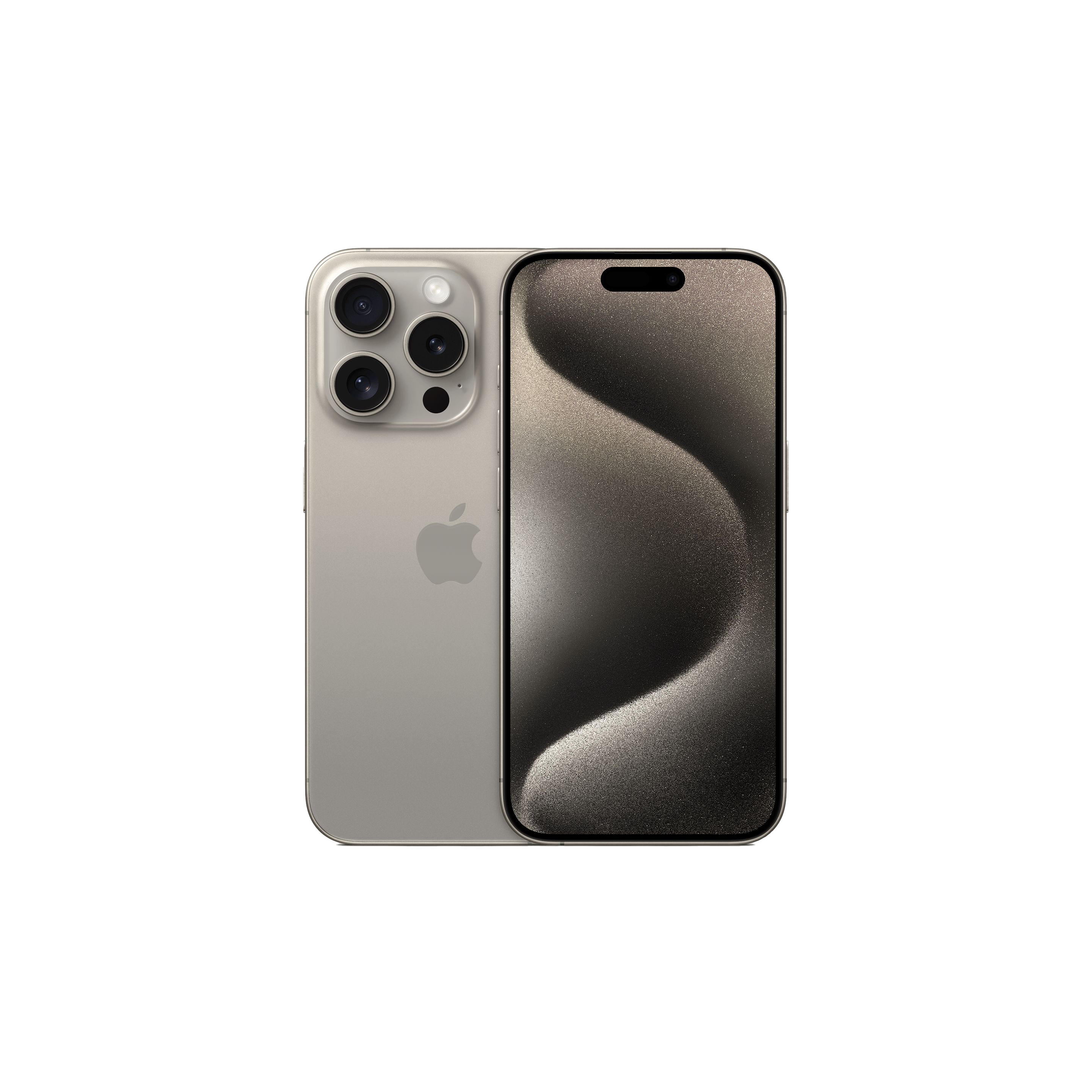

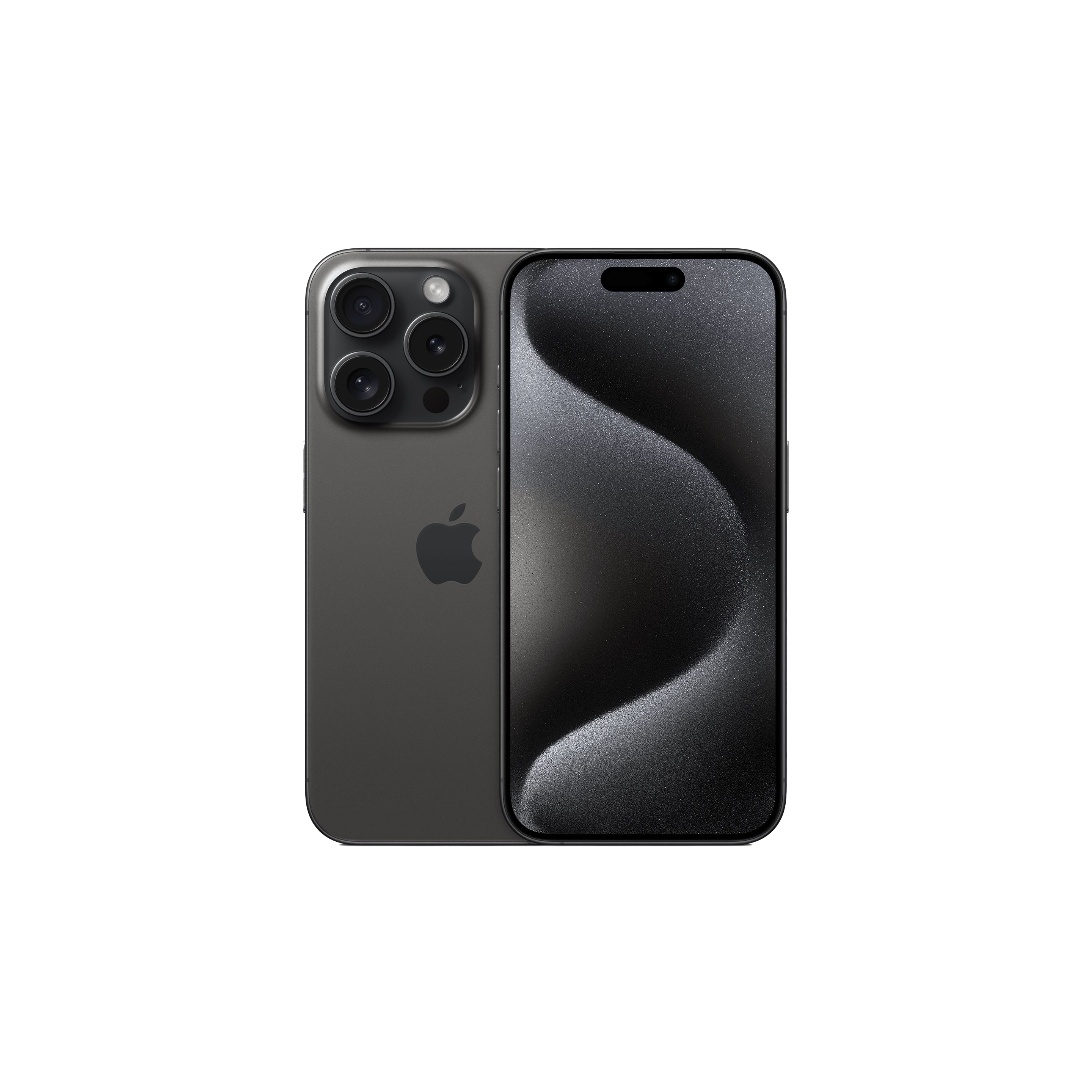

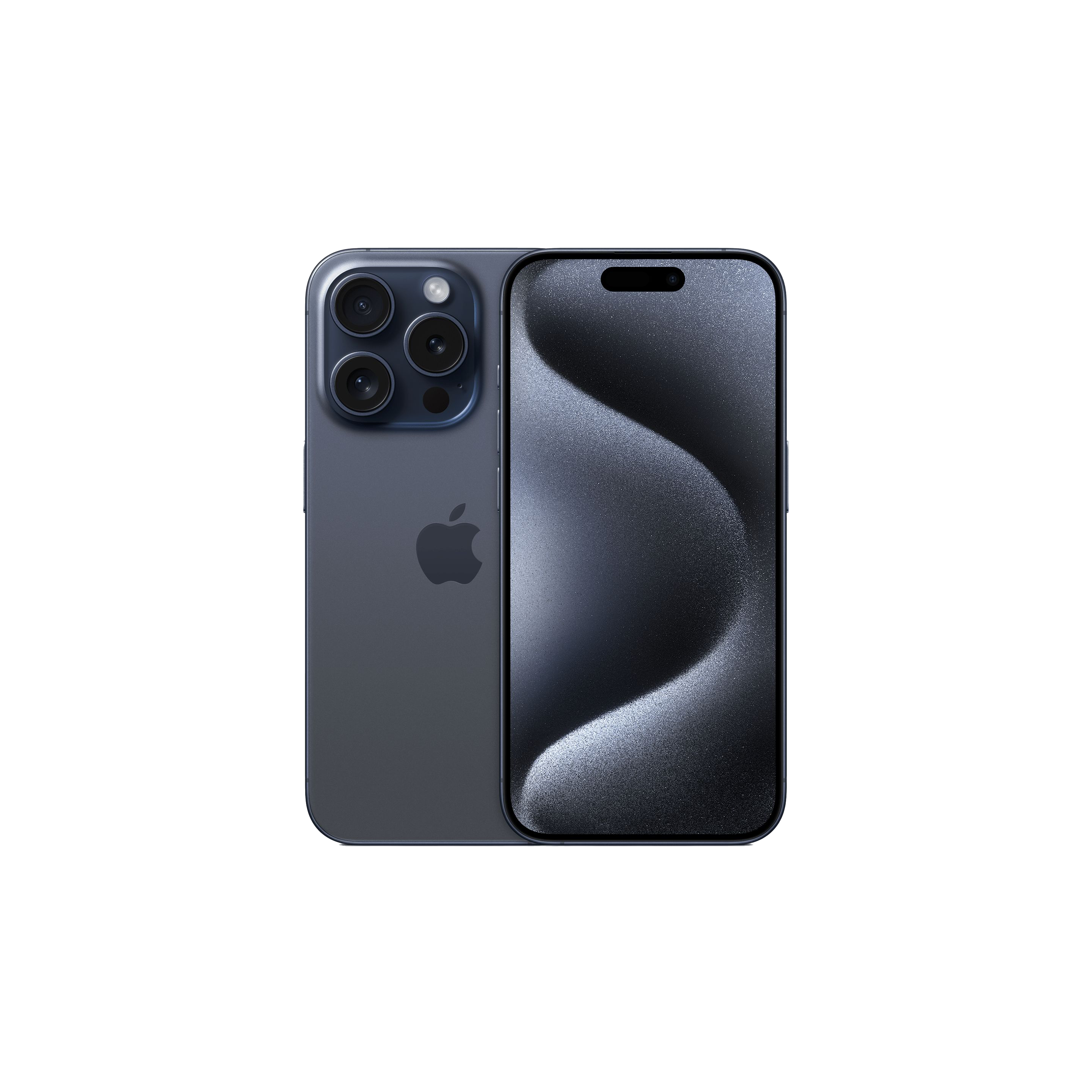

Black Titanium, White Titanium, Blue Titanium, Natural Titanium
Models
A2848, A3101, A3102, A3104, iPhone16,1
SAR
1.14 W/kg (head) 1.16 W/kg (body)
SAR EU
0.98 W/kg (head) 0.98 W/kg (body)
Price
$ 999.99 / € 1,199.00 / £ 999.00 / ₹ 134,900
TESTS
Display
Contrast ratio: Infinite (nominal)
Camera
Photo / Video
Loudspeaker
-26.4 LUFS (Good)
Battery (new)
Active use score 12:58h
Battery (old)
Endurance rating 86h
